When manufacturers start producing HVAC units or air conditioning housings, one of the first surface finish challenges is protection against corrosion, moisture, and UV degradation—especially when these units are installed outdoors or in coastal environments. A quality powder coating line becomes an essential investment.
At Yantai Clear, we help HVAC equipment manufacturers design custom powder coating lines that meet their specific product shapes, batch sizes, and production goals. Here’s how we approach it based on years of experience in this sector.
1. Why Powder Coating Is Critical for HVAC Enclosures
HVAC sheet metal parts, from condensers to ducts and outdoor housings, are typically made of galvanized or mild steel. These components are constantly exposed to temperature changes, humidity, and airborne chemicals. Powder coating offers a uniform, durable, and eco-friendly solution that provides:
Excellent corrosion resistance
High mechanical strength
UV stability and color retention
Smooth appearance without drips or runs
Many clients ask whether it’s better to use wet paint or powder. Our answer is clear: for the HVAC industry, powder coating lasts longer and reduces maintenance costs significantly.
2. Choosing the Right Coating System Configuration
For HVAC component production, we usually recommend a semi-automatic or fully automatic powder coating line, depending on your plant size and budget.
The basic configuration includes:
Pre-treatment tunnel or dip tank for rust/oil removal
Drying oven to ensure surface readiness

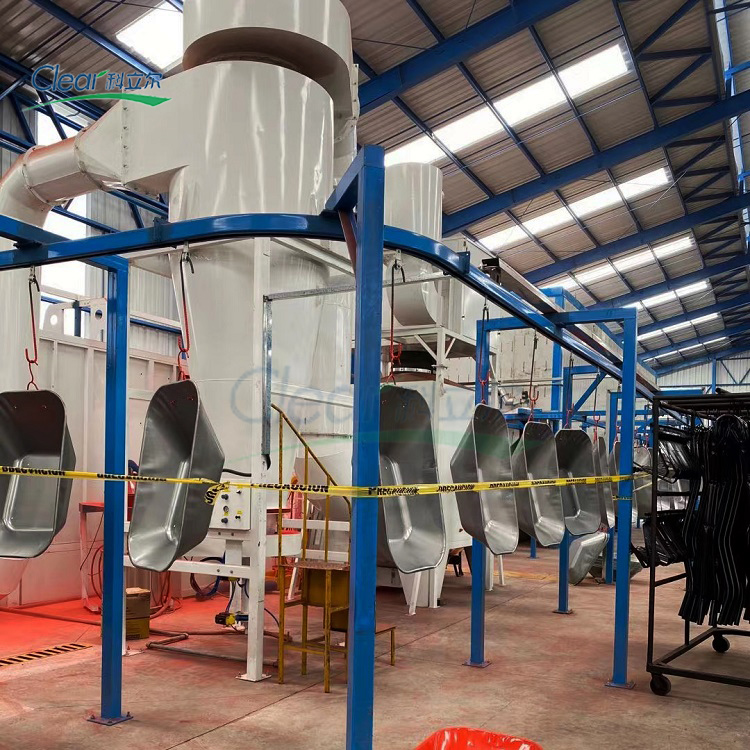

Powder coating booth (manual or with reciprocators)
Cyclone and cartridge filter system for powder recycling
Curing oven optimized for box-shaped metal enclosures
Overhead conveyor system to manage the workflow
Each stage is essential. For instance, a good pre-treatment section ensures no grease or metal flakes interfere with powder adhesion. We often advise using 3 or 5-stage treatment systems with stainless steel tanks.
3. Handling the Size and Complexity of HVAC Components
Unlike flat panels or simple frames, HVAC housings often include louvers, vents, and internal folds. This makes powder coating trickier. That’s why we design our booth layout and gun positioning to avoid “dead corners” and powder shadowing. In some cases, we combine manual touch-up zones with automated gun systems to ensure full coverage.
We also adjust the curing oven airflow and temperature curve to make sure thicker parts cure completely without burning thinner ones.
4. Production Efficiency & Energy Saving
Powder coating lines for HVAC projects must be fast and energy-efficient. We help clients reduce energy costs by:
Using gas or electric ovens with ceramic fiber insulation
Installing heat exchangers to reuse hot air
Optimizing the conveyor speed and hanging method to minimize idle runs
5. Real-World Project from Yantai Clear
A customer from Mexico came to us with a problem: their old spray booth left too much powder waste, and inconsistent curing caused coating cracks on air handler casings. We redesigned their entire coating system, including a new powder center and balanced air oven, and cut their reject rate by 40%.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Need a Customized Powder Coating Line for HVAC Products?
Yantai Clear offers expert design, installation, and support for HVAC powder coating lines. Whether you’re upgrading an existing setup or starting from scratch, we’re here to help you build a line that performs reliably for years to come.
